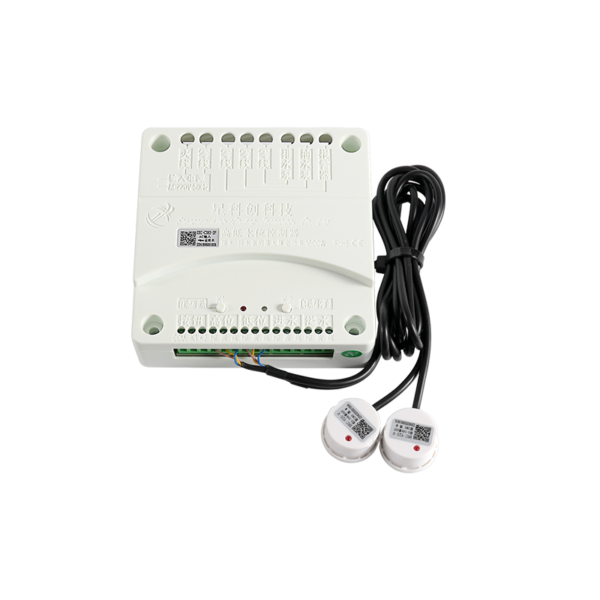

XKC-C382 Non-Contact Automatic Liquid Level Controller
The XKC-C382 is an intelligent, non-contact liquid level controller designed for efficient and automatic control of water levels in various containers or tanks. This controller provides features such as automatic water replenishment, drainage, water shortage protection, and overflow protection, making it ideal for industrial, agricultural, and water treatment applications. It can be operated both in manual and automatic modes.
- Description
- Manual
- Reviews (0)
Description
Key Features
- Wide Voltage Power Supply
- Supports AC 110V-220V input voltage, ensuring compatibility with most industrial power systems.
- Relay Output for Load Control
- Relay active contact output suitable for controlling water pumps or other devices in various applications.
- Handles a max load of 800W (for 110V) and 1600W (for 220V).
- For loads exceeding 1600W, an intermediate relay can be added for higher power capacity.
- Automatic Water Replenishment and Drainage
- When the liquid level is too low, the low liquid level sensor triggers the system to activate the water pump for replenishment.
- Once the liquid level reaches a certain height, the high liquid level sensor disconnects the relay, automatically stopping the pump, and keeping the water level stable.
- Manual and Automatic Control
- Offers flexibility with both manual and automatic control modes. You can operate the water pump manually or set it to automatically regulate the water level.
- Water Shortage and Overflow Protection
- Provides water shortage protection to prevent the pump from running dry and overflow protection to prevent overfilling of the container.
- Simple Installation
- The screw-mounted, wall-mounted installation design makes the controller easy to install in various settings.
- Compact and Durable Design
- The controller features compact dimensions of 115mm x 90mm x 40mm, allowing it to fit in tight spaces.
- Built with a high-quality, durable enclosure to withstand challenging environments.
- Certifications
- CE certification for safety.
- ROHS-2.0 certification for environmental compliance.
Technical Specifications
| Parameter | Details |
|---|---|
| MPN | XKC-C382 |
| Input Voltage | AC 110V-220V |
| Output Voltage | AC 110V-220V |
| Working Current | ≤ 7A |
| Working Voltage | AC 110V-220V |
| Power Consumption | ≤ 2W |
| Loading Power | 110V: Max 800W, 220V: Max 1600W |
| Alarm Output | 800W-1600W (resistive load) |
| Output Method | Relay normally open output |
| Sensor Interface Voltage | DC 12V |
| Working Temperature | -20°C to 105°C |
| Humidity | ≤ 80% |
| Installation | Wall mounting |
| Dimensions | 115mm x 90mm x 40mm |
| Safety Certification | CE |
| Environmental Certification | ROHS-2.0 |
Operation Functions
- Automatic Water Replenishment:
When the liquid level is too low, the low liquid level sensor sends an alarm signal to activate the water pump. The pump adds water to the container until the high liquid level sensor deactivates the pump. - Automatic Drainage:
The system automatically stops the pump once the liquid reaches the desired high level, preventing overfilling and ensuring stable liquid control. - Manual Mode Control:
In manual mode, users can control the water pump directly, offering flexibility when automatic control is not desired. - Water Shortage & Overflow Protection:
The system protects against dry running by stopping the pump in case of water shortage and prevents overflows when the liquid level is too high.
Applications
- Industrial Systems: For controlling liquid levels in industrial tanks, reservoirs, and pipelines.
- Agricultural Irrigation: Ensures proper water levels in irrigation systems.
- Water Treatment Facilities: Helps in maintaining accurate water levels in purification and wastewater treatment tanks.
- Chemical & Food Processing: Controls liquid levels in processing containers and storage tanks.
