R-1234ze Refrigerant: The Future of Sustainable Cooling Solutions

Sensor One Stop

2 years ago

Introduction to R-1234ze Refrigerant

R-1234ze is a hydrofluoroolefin (HFO) refrigerant developed as a low-GWP alternative to traditional hydrofluorocarbon (HFC) refrigerants, such as R-134a. It offers excellent energy efficiency, superior environmental performance, and safety for a wide range of cooling and heating applications. R-1234ze is used in commercial refrigeration, chillers, heat pumps, and air conditioning systems as industries move toward greener technologies.

The Need for Eco-Friendly Refrigerants

Traditional refrigerants, such as R-134a and R-410A, have a high global warming potential (GWP), contributing to climate change. Regulatory bodies, such as the European Union and the United Nations, have set stringent targets to phase out these high-GWP refrigerants. The Montreal Protocol and Kigali Amendment require the industry to adopt low-GWP refrigerants like R-1234ze to reduce environmental impact.

What is Global Warming Potential (GWP)?

GWP measures a substance’s impact on global warming over 100 years, compared to carbon dioxide (CO₂), which has a GWP of 1.

R-134a has a GWP of 1430.
R-1234ze has a GWP less than 1, making it an environmentally superior choice.

GWP Calculator

R-1234ze as a Replacement for HFCs

R-1234ze is designed to replace high-GWP refrigerants such as R-134a and R-410A. It is widely adopted in industrial chillers, heat pumps, air conditioning units, and supermarket refrigeration systems, offering a future-proof solution for sustainable cooling.

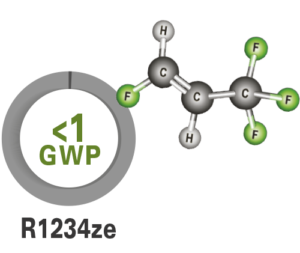

Properties and Technical Characteristics of R-1234ze

Chemical Formula: C3H2F4
Molecular Weight: 114 g/mol
Boiling Point: -19°C (-2.2°F)
GWP: <1
Ozone Depletion Potential (ODP): 0
Classification: A2L (Mildly Flammable)

R-1234ze is non-toxic, has excellent thermodynamic properties, and is classified as mildly flammable, which ensures a safe and energy-efficient operation with proper handling.

Applications of R-1234ze Refrigerant

R-1234ze is versatile and suitable for:

Commercial and Industrial Chillers
Heat Pumps
Supermarket Refrigeration Systems
Air Conditioning in Public and Commercial Spaces
Foam Blowing Agents for insulation materials
Low-temperature cooling in pharmaceutical and food industries

More Application Refrigerant: Applications of Refrigerants: An In-Depth Analysis

R-1234ze vs R-134a: A Performance Comparison

Parameter	R-1234ze	R-134a
GWP	<1	1430
ODP	0	0
Energy Efficiency	Comparable	High
Flammability	Mildly Flammable	Non-flammable
Adoption	Increasing	Phasing Out

R-1234ze offers comparable energy efficiency to R-134a but with significantly lower environmental impact.

Comparative Analysis of Refrigerants, Properties, Advantages, and Disadvantages

Benefits of R-1234ze

1. Low Global Warming Potential

With a GWP of less than 1, R-1234ze meets the strictest environmental regulations and contributes to reducing the carbon footprint of cooling systems.

2. High Energy Efficiency

R-1234ze provides similar or even better energy performance than traditional refrigerants, ensuring efficient operation of air conditioning and refrigeration systems.

3. Ozone-Friendly

Like many HFO refrigerants, R-1234ze has an ozone depletion potential (ODP) of 0, meaning it does not harm the ozone layer.

4. Versatility

R-1234ze is suitable for both high-temperature and low-temperature applications, making it ideal for industrial and commercial uses.

Related Read: What Makes a Good Refrigerant?

Safety Considerations

R-1234ze is classified as mildly flammable (A2L), meaning it poses minimal flammability risks if handled correctly. Safety measures, such as ventilation and leak detection systems, are necessary for proper installation and maintenance. Technicians must be trained to handle A2L refrigerants safely.

Compliance with Global Regulations

R-1234ze aligns with global environmental standards, including:

These regulations push for the phase-out of high-GWP refrigerants and encourage the use of environmentally friendly alternatives.

Challenges of Adopting R-1234ze

Flammability Concerns

Although R-1234ze is only mildly flammable, it requires appropriate safety protocols during installation and operation.

Cost of Transition

The transition to R-1234ze may involve upfront costs for new equipment and technician training. However, these costs are offset by the long-term regulatory compliance and energy savings.

Frequently Asked Questions (FAQs)

Is R-1234ze Safe to Use?

Yes, R-1234ze is safe to use when proper safety protocols are followed. It is classified as mildly flammable but poses minimal risks in controlled environments.

Can R-1234ze Replace R-134a Directly?

In most cases, replacing R-134a with R-1234ze requires system modifications to ensure proper performance.

What Makes R-1234ze More Eco-Friendly?

R-1234ze has a GWP of less than 1 and an ODP of 0, making it far more environmentally friendly than older refrigerants.

Future Trends in Low-GWP Refrigerants

The refrigeration and air conditioning industries are rapidly shifting toward low-GWP refrigerants like R-1234ze. Future innovations will likely focus on improving energy efficiency and developing refrigerants with even lower environmental impact.

Conclusion

R-1234ze is an essential refrigerant for the future of sustainable cooling systems. With its low GWP, excellent energy efficiency, and compliance with international regulations, R-1234ze offers a viable alternative to traditional HFCs like R-134a. As industries continue to adopt greener technologies, R-1234ze will play a crucial role in minimizing the environmental impact of cooling and refrigeration systems.
