What is Electrochemical Energy Storage
Electrochemical energy storage refers to the process of storing electrical energy in chemical form, which can be later converted back into electricity when needed. It involves the use of electrochemical reactions to store and release energy, typically in the form of charged particles, such as ions or electrons.
The most common form of electrochemical energy storage is through batteries. Batteries consist of one or more electrochemical cells, each containing two electrodes – a positive electrode (cathode) and a negative electrode (anode) – separated by an electrolyte. During charging, a chemical reaction occurs at the electrodes, causing ions or electrons to be stored within the battery. When the battery is discharged, the stored energy is released as the chemical reaction is reversed, allowing the ions or electrons to flow back through the circuit, generating electrical power.

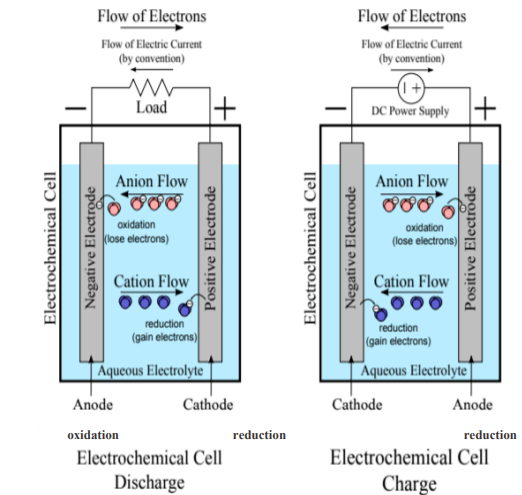

Charging and discharging cycle of an electrochemical battery cell. (Source: mdpi.com)
Types of Electrochemical Energy Storage

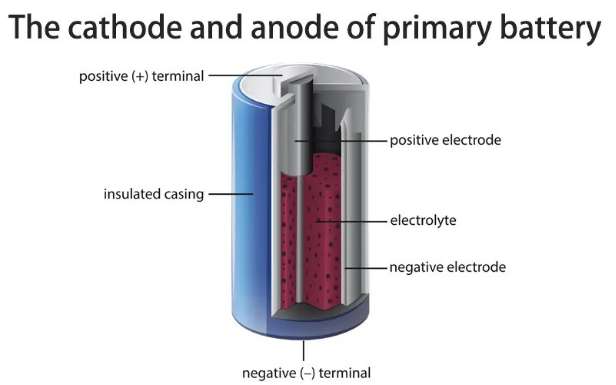

Primary battery electrochemical energy storage
(Source: tycorun.com)
Primary batteries, also known as non-rechargeable batteries, are a type of electrochemical energy storage where the chemical reactions are non-reversible. These batteries are designed for single-use and cannot be recharged. Common examples include alkaline batteries, lithium batteries, and zinc-carbon batteries. They are widely used in portable electronics, toys, medical devices, and other applications where a long-lasting, disposable power source is needed.

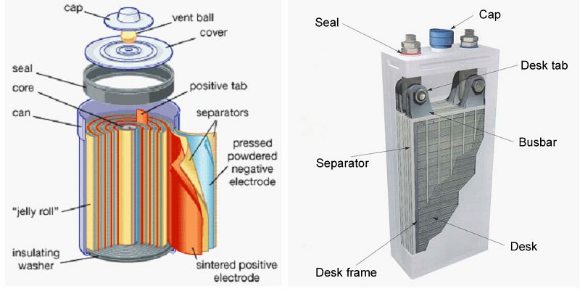

Battery electrochemical energy storage
(Source: intechopen.com)
Battery energy storage systems (BESS) are rechargeable electrochemical energy storage devices that can store and release electrical energy multiple times. This technology is commonly found in various applications, ranging from small-scale devices like smart phones and laptops to larger-scale installations for renewable energy integration and grid stabilization. Lithium-ion batteries, lead-acid batteries, and nickel-cadmium batteries are some of the most widely used types of batteries in energy storage applications.

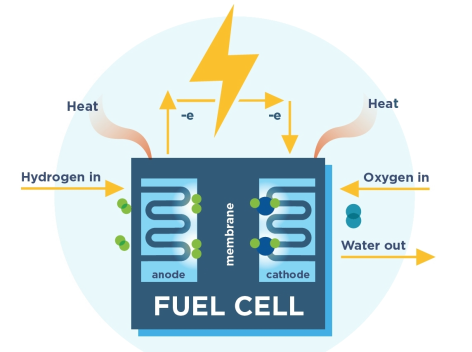

Fuel cell electrochemical energy storage
(Source:fchea.org)
Fuel cells are a unique form of electrochemical energy storage that directly converts the chemical energy of a fuel, such as hydrogen, into electrical energy through an electrochemical process. Fuel cells operate continuously as long as the fuel is supplied, making them suitable for applications that require extended periods of power generation. They are commonly used in stationary power systems, transportation (such as hydrogen fuel cell vehicles), and portable power devices. Hydrogen fuel cells, phosphoric acid fuel cells, and solid oxide fuel cells are among the most prevalent types of fuel cells.
Each type of electrochemical energy storage has its own advantages and applications. Primary batteries provide convenient, portable power but are not rechargeable. Battery energy storage systems are versatile and can be scaled for various applications. Fuel cells offer continuous power generation with high efficiency, making them suitable for specific niche markets. As technology advances, these types of electrochemical energy storage continue to improve in terms of energy density, cycle life, safety, and cost-effectiveness, further expanding their applications in our energy landscape.
Electrochemical Energy Storage Application
Grid-Scale Energy Storage
Electrochemical energy storage plays a crucial role in grid-scale applications. It helps balance the supply and demand of electricity, especially when dealing with intermittent energy sources like renewable energy. By storing excess electricity during periods of low demand and releasing it during peak demand, electrochemical energy storage systems enhance grid stability and reliability.
Renewable Energy Integration
One of the significant challenges with renewable energy sources is their intermittency. Electrochemical energy storage allows for the integration of renewable energy into the grid by storing excess energy generated during periods of high production. This stored energy can then be used to supplement power during periods of low renewable energy generation, ensuring a consistent and reliable energy supply.
Backup Power
Electrochemical energy storage systems provide backup power solutions for critical applications, such as hospitals, data centers, and telecommunications networks. In the event of a power outage, these systems can quickly and seamlessly supply electricity, ensuring uninterrupted operations and safeguarding essential services.
Electric Vehicles (EVs)
The electrification of transportation is on the rise, and electrochemical energy storage plays a vital role in supporting the adoption of electric vehicles. Battery systems in EVs store electrical energy to power the vehicle. Fast-charging infrastructure, enabled by electrochemical energy storage, allows for rapid charging of electric vehicles, making them more convenient and practical for everyday use.
Off-Grid Power Systems
Electrochemical energy storage finds applications in off-grid power systems, where access to the central grid is limited or non-existent. These systems, often combined with renewable energy sources like solar or wind, store excess energy for use during periods of low generation or high demand. They provide reliable and independent power solutions for remote areas, islands, or off-grid communities.
Time-of-Use Optimization
Electrochemical energy storage enables optimal utilization of electricity during peak and off-peak hours. By storing energy during off-peak periods when electricity rates are lower and releasing it during peak hours when rates are higher, users can reduce their electricity costs and optimize their energy consumption.
Microgrids
Electrochemical energy storage is a key component of microgrid systems, which are localized power networks that can operate independently or in conjunction with the main grid. These systems can incorporate renewable energy sources, storage, and intelligent control systems to provide reliable and sustainable power to specific areas or communities.
Industrial Applications
Electrochemical energy storage systems find applications in various industrial sectors, such as manufacturing plants or warehouses, where high-power demand and load management are critical. These systems can help optimize energy usage, reduce peak demand charges, and provide backup power for uninterrupted operations.
Conclusion
Electrochemical energy storage technology continues to evolve, with ongoing research and development efforts aimed at improving energy density, cycle life, safety, and cost-effectiveness. With further advancements, electrochemical energy storage will continue to play a crucial role in shaping the future of energy storage and enabling a cleaner and more sustainable energy landscape.
