In today’s digitally connected world, light sensors play a vital role in bridging the gap between the physical and electronic worlds. These sensors detect and respond to light, converting light intensity into electrical signals that machines can process. Whether used in smartphones to adjust screen brightness or in agriculture to optimize plant growth, light sensors are integral to numerous modern applications.
This article offers a comprehensive overview of light sensors—how they work, the various types available, their characteristics, and how they are revolutionizing industries like automation, smart lighting, environmental monitoring, and beyond.
1. What is a Light Sensor?
A light sensor (or photodetector) is an electronic device that measures light intensity and responds to it. Light sensors convert variations in light intensity into corresponding electrical signals.

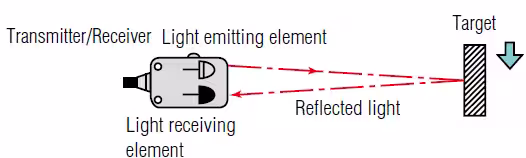

1.1 Working Principle
Most light sensors work by:
- Detecting photons (light particles)
- Converting light energy into electrical energy
- Sending an analog or digital signal to a processing unit
1.2 Measured Parameter
- The primary unit of measurement is lux, which quantifies illuminance (lumens per square meter).
- Some sensors also measure irradiance, spectral composition, or Photosynthetically Active Radiation (PAR).
2. Types of Light Sensors
Light sensors vary in design and application. The most common types include:

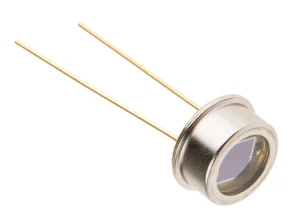

2.1 Photodiodes
- Semiconductor devices that generate current when exposed to light.
- Fast response time.
- Widely used in optical communication and scientific instrumentation.
2.2 Phototransistors
- Like photodiodes but with amplification.
- More sensitive to light.
- Common in light switches and IR receivers.
2.3 Photoresistors (LDR – Light Dependent Resistors)
- Resistance changes based on light intensity.
- Simple and inexpensive.
- Ideal for basic light detection tasks (e.g., night lights, garden lamps).
2.4 Photovoltaic Cells (Solar Cells)
- Convert light into voltage directly.
- Used primarily for power generation rather than sensing.
2.5 Ambient Light Sensors
- Optimized to detect light as perceived by the human eye.
- Common in smartphones and display devices for auto-brightness control.
2.6 UV Sensors
- Measure ultraviolet radiation (UVA and UVB).
- Used in environmental monitoring and health applications.
2.7 Infrared (IR) Sensors
- Detect infrared light outside the visible spectrum.
- Widely used in remote controls, motion detection, and thermal imaging.
2.8 Spectral Sensors
- Detect specific wavelengths (e.g., red, green, blue, NIR).
- Useful in agriculture, food quality control, and scientific analysis.
3. Key Specifications
| Parameter | Description |
|---|---|
| Spectral Range | Visible (380–780 nm), IR, or UV |
| Sensitivity | Ability to detect low light levels |
| Response Time | Time taken to respond to changes in light |
| Output Type | Analog (voltage/current) or digital (I2C, SPI, UART) |
| Operating Voltage | Typically 3.3V or 5V |
| Accuracy | Deviation from true light intensity (±%) |
| Temperature Range | Often –20°C to 85°C |
4. Applications of Light Sensors
Light sensors are versatile and widely used across diverse fields:
4.1 Consumer Electronics
- Smartphones: Auto-brightness and camera metering.
- Laptops and TVs: Screen dimming and energy saving.
4.2 Smart Lighting Systems
- Automatic light adjustment based on ambient brightness.
- Used in homes, offices, and public buildings.
4.3 Agriculture
- Measurement of sunlight for photosynthesis optimization.
- Spectral light analysis for crop health.
4.4 Solar Energy
- Track solar irradiance for panel optimization.
- Used in solar tracking systems.
4.5 Industrial Automation
- Light sensors as part of machine vision systems.
- Conveyor belt sorting and counting applications.
4.6 Security and Safety
- Used in motion detectors and intruder detection.
- Night/day detection for CCTV cameras.
4.7 Automotive Industry
- Automatic headlight switching.
- Cabin light adjustment based on ambient lighting.
4.8 Environmental Monitoring
- Monitoring UV levels for climate and ozone studies.
- Light pollution analysis in cities.
5. Integration with IoT and Smart Systems
Light sensors are increasingly embedded in IoT ecosystems. Here’s how they interact with other technologies:
5.1 Smart Cities
- Street lighting systems that dim or brighten based on daylight and human presence.
- Reduction of energy costs and light pollution.
5.2 Smart Homes
- Home automation platforms (e.g., Alexa, Google Home) that use light sensors for curtain control, light switches, and alarms.
5.3 Weather Stations
- Measure solar radiation, illuminance, or PAR.
- Combined with temperature, humidity, and pressure sensors.
5.4 Industrial IoT (IIoT)
- Used in light-based quality control systems.
- Feedback for robotic arms based on visual cues.
6. Popular Light Sensor Modules
| Sensor Model | Type | Communication | Use Case |
|---|---|---|---|
| BH1750 | Ambient Light Sensor | I2C | Low-power brightness detection |
| TSL2561 | Dual-channel sensor | I2C | Visible + IR detection |
| APDS-9960 | Light + gesture sensor | I2C | Smart interfaces, RGB detection |
| MAX44009 | High range lux sensor | I2C | Outdoor and industrial lighting |
| ML8511 | UV light sensor | Analog | UV index measurement |
| TEMT6000 | Analog light sensor | Analog | General ambient light detection |
7. Design Considerations
When designing or selecting a light sensor for a specific application, consider:
- Spectral Sensitivity: Match the required light range (e.g., visible, IR, UV).
- Linear Output: Ensure predictable scaling with light intensity.
- Operating Conditions: Evaluate temperature and humidity limits.
- Calibration: Needed for accurate lux readings in scientific or industrial uses.
- Size and Mounting: Sensor package must fit the physical constraints of the device.
8. Advantages of Using Light Sensors
- Automation: Enables systems to respond to environmental changes.
- Energy Efficiency: Reduces unnecessary power consumption.
- User Comfort: Enhances visual ergonomics in displays.
- Data Logging: Records environmental light levels over time.
- Safety: Supports adaptive systems for better visibility and surveillance.
9. Limitations and Challenges
- Temperature Sensitivity: May affect accuracy.
- Dust and Dirt: Optical components can degrade over time.
- Spectral Interference: Artificial lighting can distort readings.
- Cost: High-accuracy or multi-spectral sensors can be expensive.
- Latency: Some sensors have slower response times.
10. Future Trends
The evolution of light sensors is aligned with advancements in miniaturization, integration, and machine learning:
- AI-Powered Sensing: Adaptive lighting systems based on learned user behavior.
- Multifunctional Chips: Combining light, gesture, proximity, and IR sensing.
- Wearable Integration: Light sensors in smartwatches and health trackers.
- Sustainable Design: Self-powered sensors with solar harvesting.
Conclusion
Light sensors are a cornerstone technology in modern electronic systems. They offer intelligent control, automation, and environmental awareness for applications ranging from agriculture and energy to consumer electronics and security. As smart technologies evolve, light sensors will become increasingly intelligent, energy-efficient, and integral to our daily lives.
Their integration with IoT networks, AI algorithms, and cloud computing further extends their capabilities, creating opportunities for smarter, greener, and more responsive systems across industries. Whether you’re a developer, engineer, or technologist, understanding light sensors provides you with a critical tool in the future of intelligent sensing.
