Infrared (NDIR) sensors, or Non-Dispersive Infrared Sensors, are critical components used for gas detection and analysis in various industries. These sensors operate based on the principle that gas molecules absorb infrared light at specific wavelengths. NDIR technology offers high reliability, selectivity, and accuracy for detecting gases like carbon dioxide (CO₂), methane (CH₄), carbon monoxide (CO), and refrigerants.
Today, NDIR sensors are vital in sectors like environmental monitoring, industrial safety, HVAC systems, automotive, and medical diagnostics. This article delves deeply into the principles, design, applications, advantages, limitations, and emerging trends associated with NDIR sensors.
1. What are Infrared (NDIR) Sensors?
Non-Dispersive Infrared (NDIR) sensors are gas sensors that detect the concentration of a specific gas in an environment by measuring the amount of infrared light absorbed by gas molecules.
The term “non-dispersive” indicates that the sensor does not use a dispersive element like a prism or diffraction grating to separate the light spectrum. Instead, it uses optical filters to focus on a specific wavelength absorbed by the target gas.
NDIR sensors are considered non-contact measurement devices, meaning they do not chemically react with the gas, contributing to their longevity and stability.
NDIR Technology: A Comprehensive Guide to Non-Dispersive Infrared Sensors

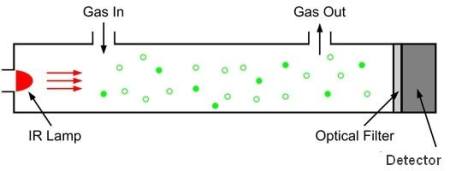

2. How Do NDIR Sensors Work?
The basic working principle involves three main steps:
2.1 Infrared Light Emission
An infrared light source (usually a tungsten filament or IR LED) emits broadband IR radiation.
2.2 Gas Absorption
The infrared light passes through the gas sample contained within an optical chamber. Specific gas molecules absorb IR light at characteristic wavelengths.
For example:
- CO₂ absorbs strongly at ~4.26 µm.
- CH₄ absorbs around 3.3 µm.
- CO absorbs at ~4.6 µm.
2.3 Detection
A detector with a narrowband optical filter measures the intensity of light at the specific absorption wavelength. The amount of absorbed light correlates with the gas concentration, based on Beer-Lambert’s Law:
Where:
- I = transmitted intensity
- I_0 = initial intensity
- k = absorption coefficient
- c = gas concentration
- l = path length
The reduction in light intensity provides a direct measure of the gas concentration.
3. Components of an NDIR Sensor
An NDIR sensor typically consists of:
- Infrared Light Source: Emits broad-spectrum IR light.
- Optical Chamber: The gas sample path where absorption occurs.
- Optical Filters: Narrowband filters tuned to the gas-specific absorption wavelength.
- Photodetector: Measures the amount of IR radiation that passes through the sample.
- Signal Processing Unit: Interprets signals and outputs gas concentration.
- Calibration Reference: To ensure long-term accuracy.
Some modern NDIR sensors also include microcontrollers and compensation mechanisms for temperature and humidity variations.
4. Gases Detected by NDIR Sensors
NDIR sensors are selective but versatile, commonly used for detecting:
| Gas | Wavelength (approx.) |
|---|---|
| CO₂ | 4.26 µm |
| CH₄ | 3.3 µm |
| CO | 4.6 µm |
| HC (Hydrocarbons) | 3.3–3.5 µm |
| NO (Nitric Oxide) | 5.3 µm |
| SF₆ (Sulfur Hexafluoride) | 10.6 µm |
| Refrigerants (R-134a, R-1234yf, etc.) | 7–10 µm range |
5. Key Advantages of NDIR Sensors
5.1 High Selectivity
NDIR sensors are highly selective because each gas has a unique IR absorption spectrum, reducing cross-sensitivity.
5.2 Long Lifetime
Since there are no chemical reactions or consumable parts, NDIR sensors can last over 10 years under proper conditions.
5.3 Stability
They offer excellent baseline stability over time, ensuring consistent performance.
5.4 Low Maintenance
Unlike electrochemical sensors, NDIR sensors require minimal calibration and servicing.
5.5 Wide Measurement Range
They can measure from very low ppm (parts per million) levels to high percent concentrations.
5.6 Non-Consumptive
They do not consume the gas being measured, making them suitable for closed-loop systems.
6. Limitations of NDIR Sensors
6.1 Cost
NDIR sensors are generally more expensive than simple chemical or electrochemical gas sensors due to complex optics.
6.2 Size
Though miniaturization is improving, traditional NDIR sensors can be bulky compared to MEMS gas sensors.
6.3 Sensitivity to Optical Contamination
Dust, water vapor, or other contaminants can affect optical components, reducing accuracy.
6.4 Limited Gas Types
They can only detect gases that have strong IR absorption bands. Gases like O₂ and N₂ cannot be detected by NDIR.
7. Applications of NDIR Sensors
7.1 Environmental Monitoring
- Air Quality Stations: Monitor CO₂, CH₄, and CO emissions.
- Greenhouse Monitoring: Regulate CO₂ concentrations to optimize plant growth.
- Climate Research: Tracking greenhouse gas levels globally.
7.2 Industrial Safety
- Leak Detection: For refrigerants and combustible gases.
- Confined Spaces: Ensuring safe levels of CO₂ and O₂.
7.3 HVAC Systems
- Demand-Controlled Ventilation (DCV): Adjusting fresh air intake based on CO₂ levels to optimize energy use and comfort.
7.4 Automotive Industry
- Cabin Air Quality: Monitoring CO₂ for driver alertness.
- Emission Testing: Measuring exhaust gases like CO and hydrocarbons.
7.5 Medical and Healthcare
- Capnography: Monitoring CO₂ in exhaled breath during surgery or critical care.
- Respiratory Analysis: Detecting metabolic changes through breath gas composition.
7.6 Food and Beverage
- Storage Monitoring: Controlling CO₂ levels in storage areas for fruits and vegetables.
8. Design Variations of NDIR Sensors
8.1 Single-Channel NDIR
Measures IR absorption at a single wavelength specific to the target gas. Suitable for controlled environments.
8.2 Dual-Channel NDIR
Uses a reference channel alongside the measurement channel to compensate for drift and external factors.
8.3 Multi-Gas Detection
Advanced NDIR sensors with multiple filters can detect and quantify several gases simultaneously.
9. Recent Technological Developments
9.1 MEMS-Based NDIR Sensors
Micro-Electro-Mechanical Systems (MEMS) technology has enabled the development of compact, low-power NDIR sensors suitable for portable and IoT applications.
9.2 LED-Based NDIR Sources
Replacing traditional filament lamps with IR LEDs extends sensor lifetime, reduces power consumption, and miniaturizes sensor size.
9.3 Smart NDIR Sensors
Integration of wireless communication, cloud connectivity, and machine learning algorithms for predictive maintenance and analytics.
9.4 Low-Power Designs
Emerging designs allow battery operation for years, ideal for remote or wearable applications.
10. Case Studies
10.1 Smart Buildings
Modern office buildings use NDIR CO₂ sensors to optimize ventilation, improving air quality while reducing energy costs by up to 40%.
10.2 Agricultural Greenhouses
Greenhouse operators use NDIR sensors to maintain optimal CO₂ levels, improving crop yields by up to 30%.
10.3 Refrigerant Leak Detection
Supermarkets install NDIR refrigerant sensors to detect leaks early, preventing costly product loss and regulatory fines.
11. Comparison with Other Gas Sensing Technologies
| Technology | Selectivity | Cost | Maintenance | Lifetime |
|---|---|---|---|---|
| NDIR Sensors | High | Medium-High | Low | Long |
| Electrochemical Sensors | Moderate | Low | High | Short |
| Catalytic Sensors | Low | Medium | Medium | Medium |
| Photoacoustic Sensors | Very High | High | Low | Long |
NDIR sensors are the preferred choice for applications requiring accuracy, selectivity, and longevity.
12. Calibration and Maintenance
While NDIR sensors are low-maintenance, regular calibration ensures optimum accuracy. Calibration procedures usually involve:
- Zero calibration with pure nitrogen or clean air.
- Span calibration with a known concentration gas standard.
Routine cleaning of optical windows and checks for contamination are also recommended.
13. Environmental and Sustainability Aspects
- Energy Efficiency: New designs prioritize low power operation.
- Extended Lifetime: Reduces electronic waste compared to shorter-lived sensors.
- Recyclability: Many manufacturers now focus on designing sensors with recyclable materials.
NDIR technology aligns with the growing global emphasis on sustainable and eco-friendly innovations.
Conclusion
Infrared (NDIR) Sensors are a powerful, reliable, and accurate technology for gas detection and analysis across numerous sectors. Their ability to detect gases without chemical reactions, combined with high selectivity and stability, makes them indispensable in modern applications from environmental monitoring to healthcare.
Despite higher costs compared to other sensor technologies, the advantages of longevity, minimal maintenance, and superior accuracy make NDIR sensors a long-term, cost-effective solution.
As advancements in MEMS, LEDs, smart analytics, and miniaturization continue, NDIR sensors are poised to become even more ubiquitous in the rapidly evolving landscape of connected devices and environmental consciousness.
