Electrochemical sensors are essential analytical devices used for detecting and quantifying chemical substances in various environments. These sensors are widely applied in fields such as medical diagnostics, environmental monitoring, industrial safety, and food quality control. They offer high sensitivity, fast response times, and the ability to detect specific chemical species, making them indispensable in modern technology.
This article will cover the working principles of electrochemical sensors, their types, applications, advantages, limitations, and future trends that will shape the development of this technology.
What is an Electrochemical Sensor?
An electrochemical sensor is a device that detects chemical substances through their electrochemical properties, such as oxidation-reduction reactions, ion exchange, or electron transfer. It converts chemical information into an electrical signal, which is then processed and analyzed to determine the concentration of the target substance.
How Do Electrochemical Sensors Work?

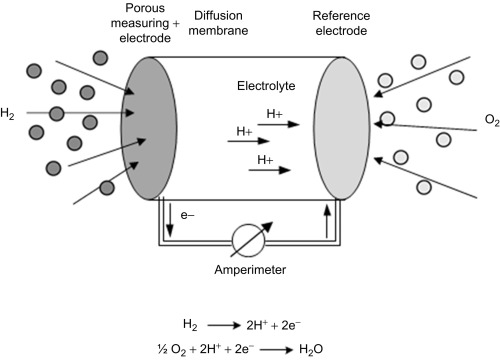

The basic working principle of an electrochemical sensor involves:
- Working Electrode – The electrode where the chemical reaction occurs.
- Reference Electrode – Provides a stable potential for comparison.
- Counter Electrode – Balances the current flow in the system.
- Electrolyte Solution – Facilitates the reaction between the target substance and the electrode.
- Signal Processing System – Converts the generated electrical signal into readable data.
When the target analyte interacts with the sensor, it undergoes an electrochemical reaction, generating an electrical current, voltage, or impedance change. This signal is then measured and correlated to the concentration of the analyte.
Types of Electrochemical Sensors
Electrochemical sensors can be classified based on their detection mechanism and application. The main types include:
1. Potentiometric Sensors
- Measure the change in voltage (electrical potential) due to ion activity.
- Commonly used in pH sensors and ion-selective electrodes (ISEs) for detecting ions like sodium, potassium, and chloride.
2. Amperometric Sensors
- Measure the current generated by an oxidation or reduction reaction at a fixed voltage.
- Used in glucose sensors, oxygen sensors, and toxic gas detection.
3. Voltammetric Sensors
- Apply a variable voltage and measure the resulting current to obtain detailed electrochemical information.
- Used for heavy metal detection, biochemical analysis, and drug testing.
4. Conductometric Sensors
- Measure changes in electrical conductivity due to the presence of target analytes.
- Found in water quality monitoring and chemical detection.
5. Impedimetric Sensors
- Detect changes in electrical impedance, often used in biosensors for detecting DNA, proteins, and pathogens.
6. Biosensors (Enzyme-Based Electrochemical Sensors)
- Utilize biological molecules like enzymes, antibodies, or DNA for selective detection.
- Applied in glucose monitoring (diabetes management), pathogen detection, and medical diagnostics.
7. Gas Sensors
- Detect gases like oxygen, carbon monoxide, hydrogen sulfide, and ammonia.
- Commonly used in industrial safety, environmental monitoring, and breath analysis.
Applications of Electrochemical Sensors
Electrochemical sensors are used in a wide range of industries and applications, including:
1. Medical and Healthcare
- Glucose Monitoring: Blood glucose sensors help diabetic patients manage blood sugar levels.
- Electrolyte Analysis: Used in blood tests to measure ion concentrations (e.g., sodium, potassium, chloride).
- Lactate and Uric Acid Monitoring: Helps assess metabolic conditions.
- DNA and Protein Detection: Electrochemical biosensors are used in medical diagnostics and disease detection.
2. Environmental Monitoring
- Water Quality Sensors: Detect pH, dissolved oxygen, nitrates, and heavy metals in water sources.
- Air Pollution Monitoring: Electrochemical gas sensors measure CO, NO₂, SO₂, and ozone levels.
- Soil Analysis: Detects nutrient levels and contaminants in agricultural soil.
3. Industrial Safety and Workplace Monitoring
- Gas Leak Detection: Sensors for detecting toxic gases like hydrogen sulfide, carbon monoxide, and ammonia.
- Fire Detection: Electrochemical oxygen sensors help monitor combustion efficiency.
- Chemical Process Monitoring: Ensures safe levels of hazardous chemicals in industrial environments.
4. Food Quality and Safety
- Pesticide and Contaminant Detection: Electrochemical sensors detect toxins and pesticide residues in food products.
- Freshness Monitoring: Measures pH and oxidation-reduction potential (ORP) in food packaging.
- Alcohol and Spoilage Detection: Used in breweries and food processing industries.
5. Automotive and Aerospace
- Oxygen Sensors in Vehicles: Monitor fuel combustion efficiency and reduce emissions.
- Hydrogen Sensors for Fuel Cells: Ensure safety in hydrogen-powered vehicles.
- Aerospace Applications: Electrochemical sensors monitor cabin air quality and oxygen levels.
6. Wearable and Portable Sensors
- Smart Wearables: Electrochemical sensors in smartwatches track sweat glucose, lactate, and hydration levels.
- Portable Toxic Gas Detectors: Used by emergency responders and industrial workers.
Advantages of Electrochemical Sensors
- High Sensitivity: Can detect very low concentrations of analytes.
- Fast Response Time: Provides real-time monitoring.
- Compact and Portable: Many electrochemical sensors are small and easy to integrate into devices.
- Low Power Consumption: Suitable for wearable and battery-powered applications.
- Cost-Effective: More affordable compared to some optical or spectroscopic detection methods.
Limitations of Electrochemical Sensors
- Limited Lifespan: Electrodes can degrade over time, reducing accuracy.
- Selectivity Issues: Some sensors may respond to multiple substances, leading to interference.
- Calibration Requirements: Regular calibration is needed to maintain accuracy.
- Environmental Sensitivity: Temperature, humidity, and pressure can affect performance.
- Potential Fouling: Biological or chemical deposits can interfere with sensor function.
Future Trends in Electrochemical Sensors
1. Miniaturization and Wearable Sensors
- Advances in nanotechnology and microfabrication are enabling the development of wearable electrochemical sensors for continuous health monitoring.
2. Integration with IoT and Wireless Connectivity
- Smart sensors with Bluetooth, Wi-Fi, and cloud connectivity will allow real-time data transmission and remote monitoring.
3. Development of Non-Invasive Sensors
- Efforts are underway to create non-invasive glucose sensors using sweat, saliva, and tears instead of blood samples.
4. Multi-Analyte Detection
- Future electrochemical sensors will be capable of detecting multiple biomarkers or contaminants simultaneously, improving efficiency in diagnostics and environmental monitoring.
5. Improved Selectivity and Stability
- Advanced nanomaterials and biofunctional coatings will enhance sensor selectivity and longevity.
6. AI and Machine Learning for Data Analysis
- AI-driven algorithms will improve pattern recognition, anomaly detection, and predictive analytics for electrochemical sensors.
7. Sustainability and Green Technology
- Researchers are developing biodegradable and eco-friendly electrochemical sensors to reduce environmental impact.
Conclusion
Electrochemical sensors have revolutionized fields such as healthcare, environmental monitoring, industrial safety, and food quality control. Their ability to provide accurate, real-time detection of chemical and biological substances makes them invaluable in modern society.
Despite challenges such as selectivity issues and limited lifespan, continuous advancements in nanotechnology, AI integration, and wearable sensor technology are paving the way for more sophisticated, reliable, and accessible electrochemical sensing solutions. As research and development progress, electrochemical sensors will continue to shape the future of analytical detection and smart monitoring systems.
